| Model | MSGP-80 |
|---|---|
| Overall Dimension | 1780×920×740mm(L×W×H) |
| Net Weight(with mulching kit) | 455kg |
| Power Engine | KOOP K00P‑195F(Optional:Kaihong KYH0N‑195F) |
| Main Transmission | Direct shaft drive |
| Main Clutch Type | Friction plate |
| Travel Power | Motor drive |
| Drive Motor | 48V 800W ×2 |
| Starting Battery | 12V32A+range extender |
| Drive Battery | 48V20A Tianneng standard battery+range extender |
| Range‑extending Generator | 56V75A DC generator |
| Remote Control Distance | 400m |
| Lifting System | Remote hydraulic cylinder lifting |
| Travel Speed | 35‑50m/min |
| Standard Configuration | Tianneng standard drive battery, LCD display for voltage & power,4 sets high‑bright laser spotlights |
| Optional Configuration | Wired remote controller, remote start, remote throttle adjustment, remote engine stop, dual‑power generator set |
| Fuel Consumption | 1.5L/h |
| Fuel Tank Capacity | 5.5L |
MSGP-80 Multi-Functional Tracked Remote Control Machine | Smart Modular Farm Robot Platform
Built for modern-day precision agriculture and regenerative farming workflows, the MSGP-80 is a heavy-duty multi-functional tracked remote control machine tailored for diversified farmland, orchard and landscaping operations. Powered by a robust 48V dual-drive system paired with auxiliary generator support, it delivers consistent traction and reliable attachment power across soft muddy soil, steep slopes and highly uneven ground, solving major labor-shortage pain points for small-to-mid-scale growers.
Its biggest competitive edge lies in the flexible quick-swap attachment platform. Instead of investing in multiple single-purpose farm implements, operators mount 8 different working heads onto one single host unit to finish grass cutting, fertilizing, mechanical weeding, backfilling, ditching, ridging, rotary tilling and light-duty earthmoving tasks. This modular design cuts equipment overhead and maximizes year-round machine utilization for smart farm setups.
8 Interchangeable Attachments, One Compact Host Machine
The MSGP-80 adopts field-proven quick-change attachment architecture. Each working head is engineered to perfectly match the host’s hydraulic lifting framework and power output, allowing operators to switch between assignments without complex tooling or professional workshop support. It fits perfectly into low-input sustainable farming strategies that prioritize mechanical weeding over heavy chemical applications.
Beyond basic mowing: Acts as an all-in-one field management robot covering multiple farming cycles.
Tool-free fast swap: Reconfigure working heads responding to seasonal crop cycles and dynamic task demands.
Distance-safe remote operation: Complete heavy-duty assignments away from harsh terrain, dust and sharp-object zones.
Wide-ranging deployment: Well-suited for commercial orchards, market vegetable farms, row-crop fields and specialized landscape maintenance projects.
Modular Design for Higher Machine Utilization
Traditional farm machines often remain idle outside a specific season or task window. The MSGP-80 changes this model by turning one host machine into a flexible work platform. By changing attachments, operators can shift from grass management to soil preparation, from field cleaning to light earthwork, without purchasing a separate machine for every job.
This approach is especially valuable for small-scale farms, orchards and landscaping contractors who need to control equipment cost while maintaining year-round work capacity. The MSGP-80 is designed to reduce capital overhead, simplify maintenance and keep the same operator platform across different field tasks.

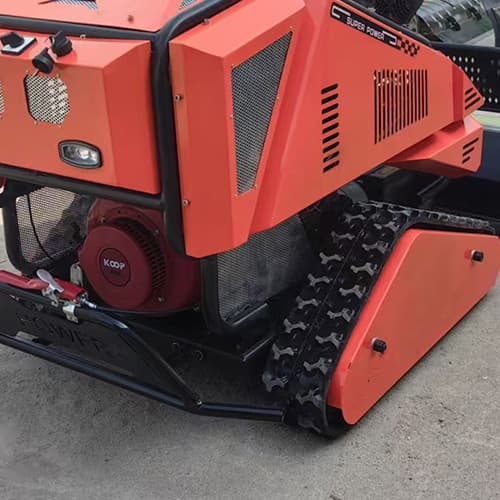

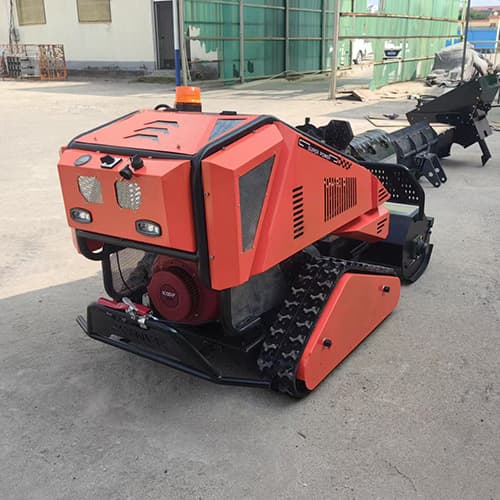

Heavy-Duty Tracked Remote Control Robot Chassis
MSGP-80 is built upon a reinforced compact tracked chassis. The wide crawler track design optimizes weight distribution and surface traction, delivering far superior stability compared with wheeled machinery when navigating water-logged soil, gradient slopes and bumpy farm terrain, a huge advantage for orchard under-canopy operations.
Standard configuration includes 48V dual independent drive modules, auxiliary range-extending generator, starter battery, real-time LCD power status readout and integrated working lamps. Travel speed can be finely adjusted between 35 and 50 m/min to adapt to diverse soil conditions and working intensity.
The full remote-operated hydraulic lifting assembly enables on-the-fly height and depth tuning for fitted attachments. Operators adjust working depth remotely while in operation, which brings huge practical convenience for ditching, ridging, backfilling and seed-bed tilling workflows.
Remote Hydraulic Control for Precision Field Work
Unlike basic remote mowers that only control movement, the MSGP-80 supports hydraulic lifting and adjustment during operation. This is a critical difference when working with soil-engaging attachments such as ditching blades, ridging tools and rotary tillers. Operators can raise, lower and fine-tune the working position without stopping the machine or leaving the control zone.
On-demand depth control: Adjust the attachment position while the machine is moving.
Better field accuracy: Maintain consistent working depth across uneven soil.
Safer operation: Stay at a distance from active soil-engaging parts.
More attachment options: Compatible with multiple working heads for different field jobs.
8 Interchangeable Working Attachments
Each attachment is dedicated to one field operation. Select the right working head, install it on the host machine, and start working immediately.
How to Select the Right Attachment
Choosing the right working head depends on the task, soil condition and crop cycle. For grass management and orchard floor maintenance, the grass shredder and weeding tool are commonly used. For soil preparation and planting work, the rotary tiller, ridging tool and ditching tool are more suitable.

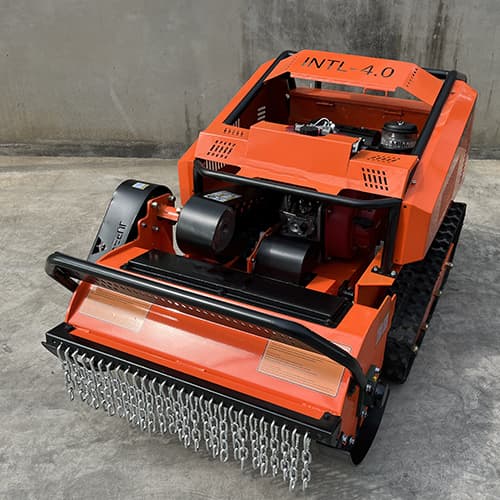

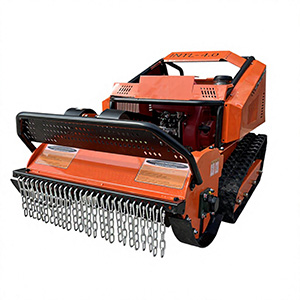

Grass control: Use the grass shredder or weeding tool.

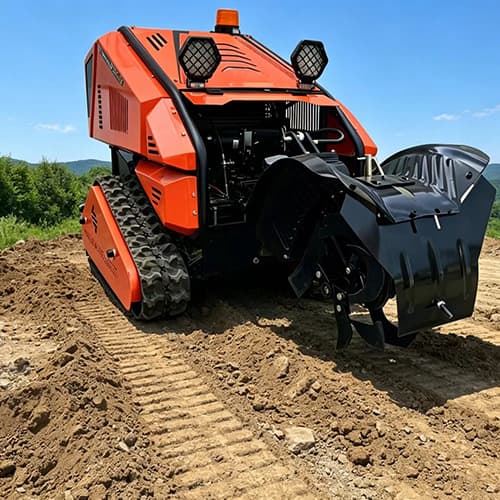

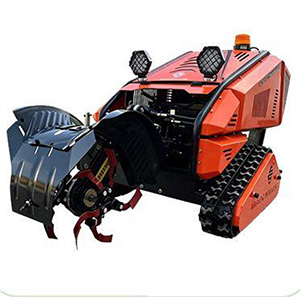

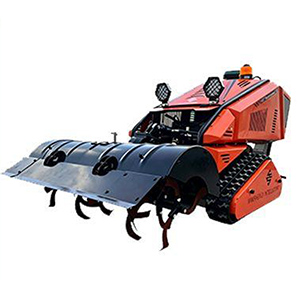

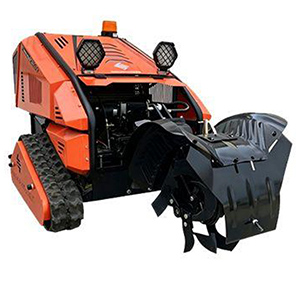

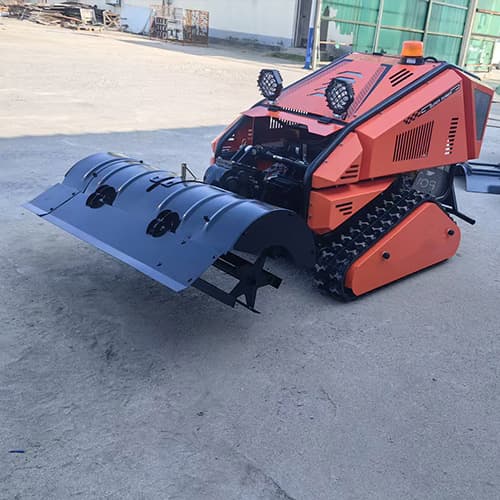

Soil preparation: Use the rotary tiller, ridging tool or ditching tool.

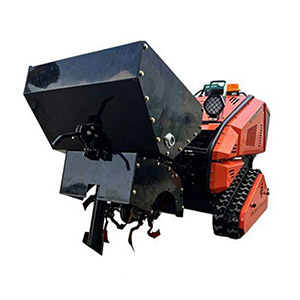

Fertilization: Use the fertilizer spreader for even granular coverage.

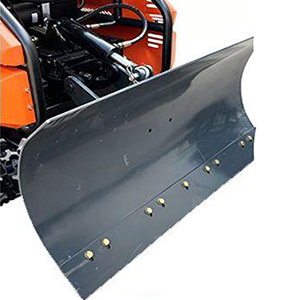

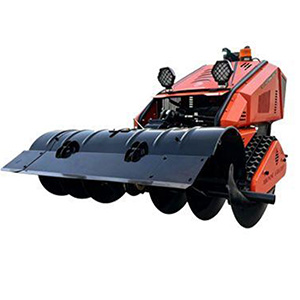

Field finishing: Use the backfilling tool or bulldozer blade.
Why Choose MSGP-80 Modular Farm Robot
Modular Multi-Function Platform
Single host supports 8 swap-on attachments covering grass management, mechanical tillage, ditching, ridging and light earth-moving for smart sustainable farming setups.
All-Terrain Tracked Mobility
Heavy-duty crawler chassis delivers outstanding grip and stability working across wet mud, slopes and uneven ground where wheeled machines struggle.
Remote-Controlled Hydraulic Lifting
On-demand remote hydraulic height-depth adjustment adapts instantly for different attachments and variable soil-working requirements.
Optimized Total Cost-of-Ownership
Reduces capital spending on multiple single-task farm implements and greatly boosts machine uptime across different crop growing cycles.
Real-World Deployment & Application Scenarios
Commercial Orchard Management
Inter-row grass cutting, mechanical weeding and targeted fertilization underneath fruit tree canopies.
Market Vegetable Farms
Seedbed tilling, precision ditching and raised-bed ridging for high-value vegetable and specialty crop production.
Row-Crop Farmland
Soil conditioning, mechanical weeding and field cleanup for diverse growing phases of field crops.
Professional Landscaping
Green-belt maintenance and light soil finishing work for parks, estates and large-scale landscape sites.
Small-Scale Earthworks
Field ditching, trench back-filling and ground levelling for farm reconstruction and land-renovation assignments.
Customized Season-Driven Combinations
Mix-and-match different working attachments responding to seasonal workflows of regenerative and precision agriculture.
MSGP-80 Multi-Functional Tracked Remote Control Farm Robot
The KOIVI MSGP-80 represents a practical modular solution for today’s evolving smart-farm market. Supported by 8 quickly-swappable working attachments, it completes grass shredding, granular fertilizing, chemical-free mechanical weeding, backfilling, irrigation ditching, planting ridging, rotary tilling and light-duty earthmoving within one unified platform. It delivers tangible efficiency improvements for commercial orchards, organic vegetable operations, row-crop plantations and light earth-work projects, a solid investment choice addressing modern-day farm labor constraints.
Why Choose KOIVI?
KOIVI provides professional mowing and vegetation management equipment for agricultural, commercial and outdoor land maintenance applications. We focus on practical product solutions, reliable manufacturing and long-term cooperation with international customers.
Professional Manufacturing
Focused on professional mowing and vegetation management equipment for demanding outdoor applications.
Custom Product Solutions
Product configurations can be discussed according to working environments, customer requirements and destination markets.
International Cooperation
Supporting international customers with product information, order communication and export arrangements.
Quality Control and Manufacturing Process
A structured manufacturing and inspection process helps ensure that each machine is prepared for reliable operation before delivery.
Certifications and Compliance
Available certifications and compliance documents depend on the specific product configuration and destination market. Please contact our team for product-specific documentation and requirements.
OEM and Customization Options
Different customers may have different requirements for product configuration, working environments and destination markets. KOIVI can discuss suitable solutions according to specific project and application requirements.
Spare Parts and Technical Support
Reliable equipment requires appropriate maintenance and support throughout its service life. KOIVI provides product information and support for customers who require maintenance guidance or replacement parts.
Product documentation, spare parts information and technical support can be provided according to the specific machine and customer requirements.
International Order and Shipping Support
We support international customers throughout the ordering process, from product selection and order confirmation to production, inspection, packing and shipping arrangements.
KOIVI Factory and Production

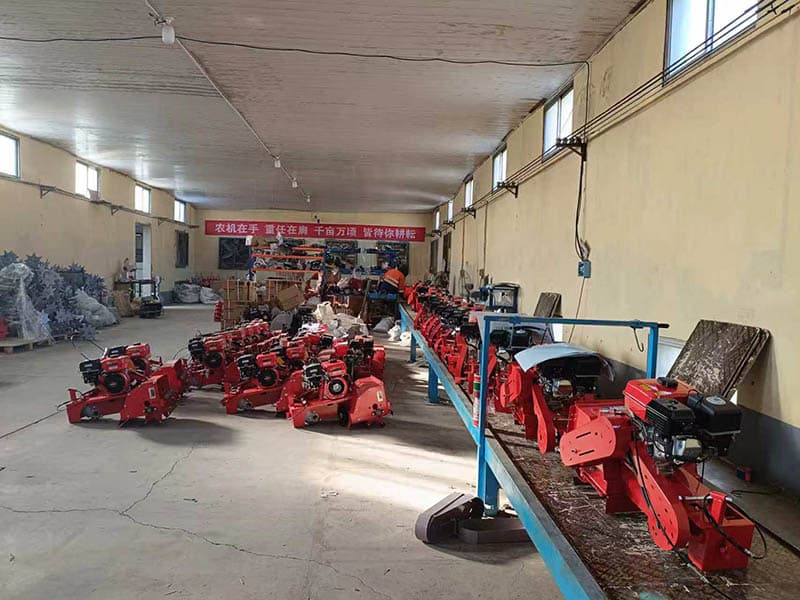

Production Workshop

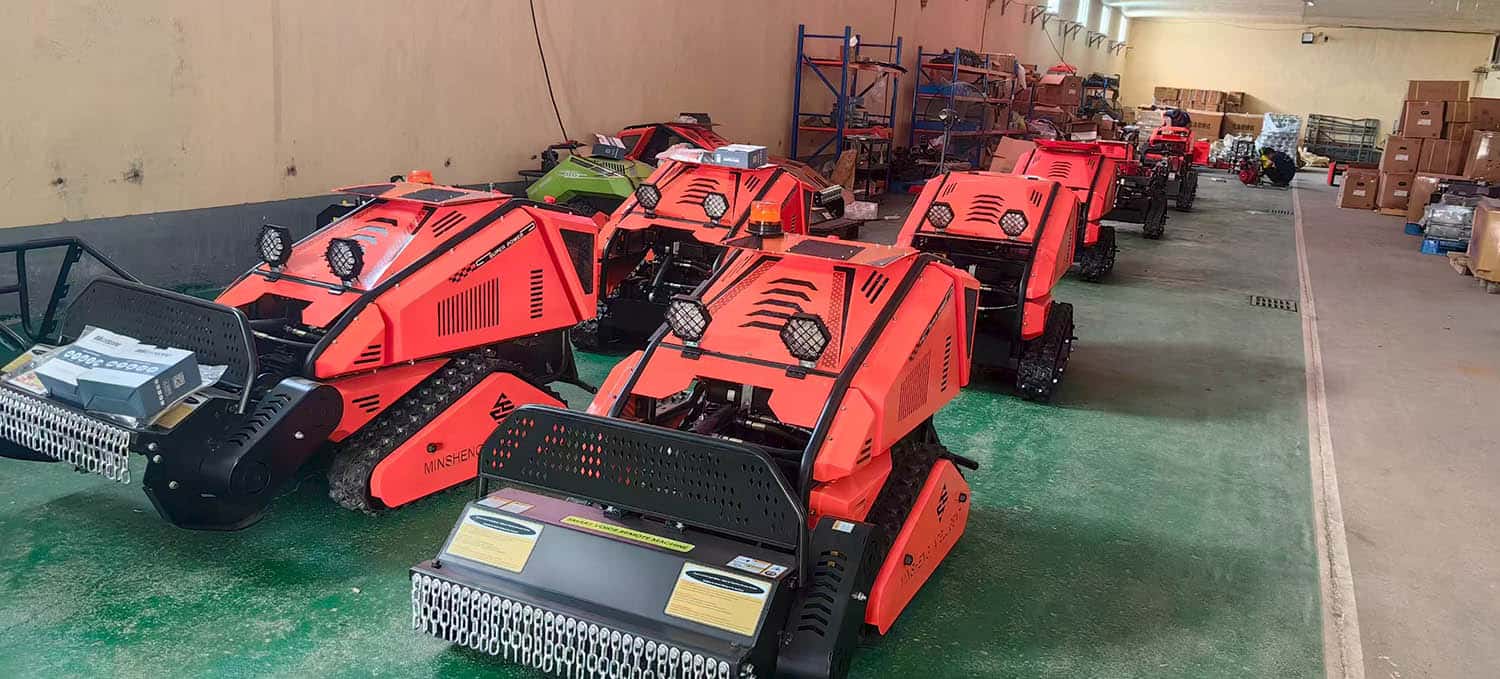

Equipment Assembly
Product Testing

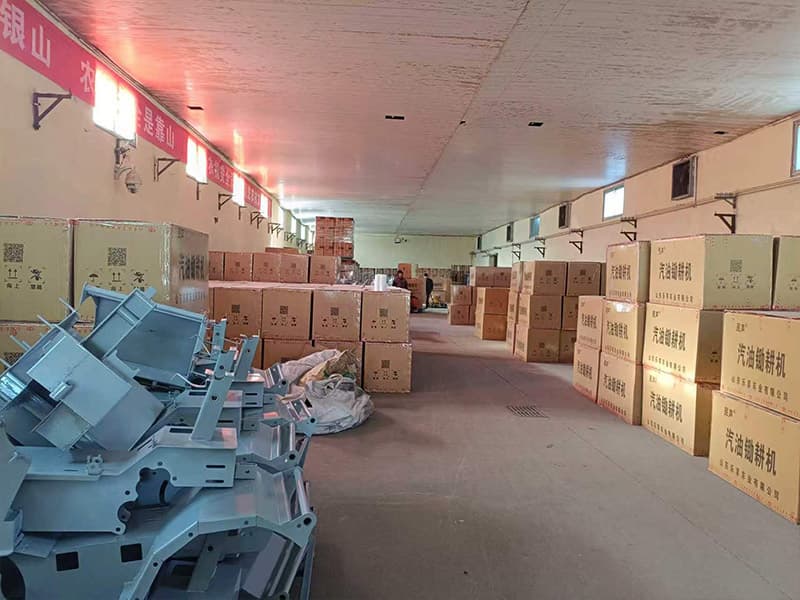

Packing shipping
